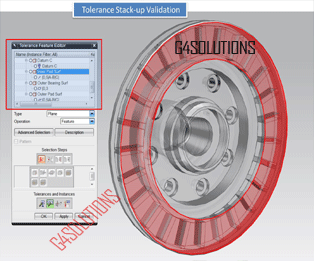

TOLERANCE STACK UP VALIDATION |
|
 |
|
Tolerance Stack up Validation is a study of accumulated variation in mechanical Products that have several parts assembled together. The individual tolerances on each of these parts play a decisive role in determining the final product tolerances and its functioning in the required manned.
Our team has experience in using the Tolerance stack up Analysis, using TSV module of NX VIS/VSA module.
Benefits of Tolerance Stack-up Study :
- Robust Design Process.
- ReducedProduction Costs from the early stages of the product development process
- Study of Dimensional relationships within an assembly
- Accurate Part Tolerances Calculation
- Effective Comparison Design Variants
- Drawing Validation.
- Design Validation
- Reduction ofManufacturing Costs such as :
- Rework
- Scrap
- Product Liability Claims etc.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
